RESTful API
The Empire v2 API is a RESTful API that provides access to the data in Empire. It was introduced in Empire 5.0 and replaced the old v1 API. The API is powered by FastAPI and is available at http://localhost:1337/api/v2/. The Swagger UI is available at http://localhost:1337/docs/. The docs here are to be used as a reference for the API and to explain nuances for interacting with it. For actual endpoint definitions, use the OpenAPI Spec. For explanations of what the heck a listener, stager, etc is, see the associated non-API documentation.

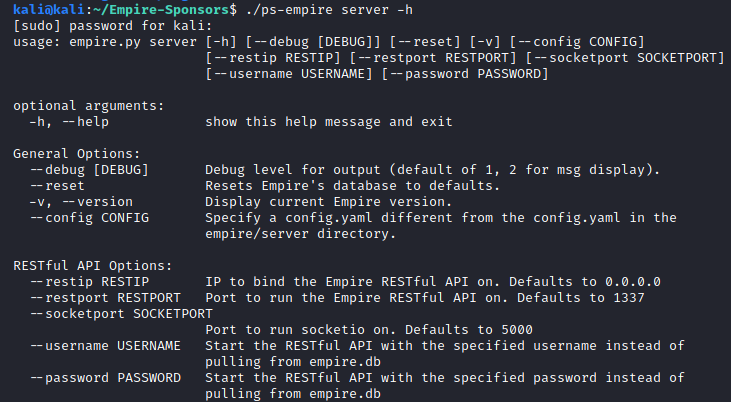

The server can be launched by running
./ps-empire server and can be connected to with the built-in client or Starkiller. By default, the RESTful API is started on port 1337, over HTTP without a certificate. This is because self-signed certs are blocked by most web browsers and Starkiller is used via a web browser.If launched with
--secure-api, https will be used using the certificate located at empire/server/data/empire.pem, which is generated at startup.The port can be changed by supplying
--restport <PORT_NUM> on launch.API Authentication is handled via JSON Web Tokens (JWT). The default username for the API is
empireadmin and the default password is password123.To login, POST to the http://localhost:1337/token endpoint with the username and password. The response will contain a field called
access_token. This token is the JWT that should be sent on subsequent requests as an Authorization header. (ie Authorization: Bearer {access_token})./api/v2/listener-templates/ Listener templates are the "types" of templates that can be used to create listeners. A listener template defines the options that can be used when creating a listener. Listener templates are read-only via the API.
The options that are listed are derived from the associated listener objects. The
value field will always be a string, for a consistent API object, but the type field will tell the client how to interpret the value./api/v2/listeners/ Listeners are created by using a listener template. The create endpoint expects the options dictionary to contain the options that are required for associated listener template and will be validated against the template. The options can be sent as strings, but Empire will still validate that they can be parsed to the correct type and raise an exception if it isn't correct.
They can be created, updated, enabled/disabled, and deleted via the API. To update a listener, it must be disabled first.
/api/v2/stager-templates/ Stager templates are the "types" of templates that can be used to create stagers. A stager template defines the options that can be used when creating a stagers. Stager templates are read-only via the API.
The options that are listed are derived from the associated stager objects. The
value field will always be a string, for a consistent API object, but the type field will tell the client how to interpret the value./api/v2/stagers/ Stagers are created by using a stager template. The create endpoint expects the options dictionary to contain the options that are required for associated stager template and will be validated against the template. The options can be sent as strings, but Empire will still validate that they can be parsed to the correct type and raise an exception if it isn't correct.
They can be created, updated, and deleted via the API. When creating a stager, there is an option to only "generate" instead of save. If
save=false, then the stager will not be saved to the database, but will be returned in the response. If the stager is a file, then the response will contain a reference to the download uri for that file./api/v2/agents/ The agent endpoints allow for updating specific fields and deleting (aka killing or archiving). The agent endpoints also have sub-resources for tasks and files.
/api/v2/agents/{agent_id}/checkins/ The agent checkins endpoints are for viewing the checkins for an agent. Checkins are created every time an agent checks in with the server. The checkins are read-only via the API.
/api/v2/agents/checkins/aggregate/ The aggregate endpoint is a read-only view of the checkins for an agent. It is a summary of the checkins for agents over time.
/api/v2/agents/{agent_id}/tasks/ The agent tasks endpoints are for tasking an agent to do something. While there are a variety of
POST endpoints for specific types of tasks, the resulting objects are the same and can be viewed together via the GET endpoints. Tasks also support deletion as long as they are still only queued to run (the agent hasn't seen it yet).Some tasks have the ability to join in a
Download, if this is the case, the downloads will appear as a property on the task response with a reference to the uri./api/v2/agents/{agent_id}/files/ The agent files endpoints are a read only view of the the files on an agent's machine. To populate agent files, a task must be run to get a list of files. At the moment running an
ls will populate this resource because of a hook that is built in to Empire. There is also a DirectoryList task that also populates these, which is what the File Browser in Starkiller uses.If a file is downloaded, then the associated AgentFile record will have a joined
Download record. Just like Stagers and Agent Tasks, if a download is associated with a file, it will be returned along with the file with a reference to the uri to download it./api/v2/modules/ The modules endpoints provide a way to view the currently loaded modules in Empire. At the moment, there is no way to create modules via the API, they must exist on the server at the time that the server is ran. There is an update endpoint that allows for enabling and disabling a module. Disabling a module will block it from being allowed to execute.
/api/v2/hosts/ Hosts are read-only via the API. Hosts represent the machines that agents are running on. Multiple agents can run on a single host. The resources are generated when an agent connects and is based on its internal IP address and name.
/api/v2/hosts/{host_id}/host-processes/ Host processes are the processes that are scraped via the
ps command on an agent. They are read-only via the API./api/v2/downloads The downloads API allows for downloading of files from the Empire server. Downloads are linked to the following sources (and can be expanded in the future):
- Saved stagers
- Downloaded agent files, such as via the file browser or a task
- Agent tasks
A user can also upload a file to the server via the
POST endpoint. That file can then be referenced to be used in certain modules./api/v2/credentials Credentials support basic CRUD operations via the API. They can also be generated by agent tasks.
/api/v2/obfuscation/keywords Keyword obfuscation supports basic CRUD operations via the API. These are used for the
keyword replacement feature within Empire./api/v2/obfuscation/global The global obfuscation endpoint allows for getting and modifying the global obfuscation configuration for a language. Modules can be pre-obfuscated by using the
/preobfuscate endpoint after configuring the obfuscation./api/v2/bypasses Bypasses support basic CRUD operations via the API. Once created, these can be passed into the
Bypasses field of a stager./api/v2/malleable-profiles Malleable Profiles support basic CRUD operations via the API. They are initially loaded via .profile files on Empire startup, and then can be change via the API. Once created, they can be passed as an option to the malleable listener.
/api/v2/plugins The plugin endpoints allow for the management of plugins. There is an endpoint for getting a single plugin, as well as a list of all plugins. The
execute endpoint allows for the execution of a plugin's code. Like a listener, stager, or module, the plugin defines its options in code, and the options can be sent as strings, but Empire will still validate that they can be parsed to the correct type and raise an exception if it isn't correct./api/v2/meta The meta endpoints are for getting information about the server itself. At the moment, there is only an endpoint for getting the version of the server.
/api/v2/users Users support basic CRUD operations via the API. There is also an endpoint for updating a user's password. Only an admin user can create and update other users.
